Product sheet for PT04 Electronic Room Thermostat Product name: PT04 Electronic Room Thermostat Brief Description: The PT04 is an easy to use electronic room thermostat, designed for manual heating control with an automatic night setback function. Advantages: Easy to operate: Ideal for infrared panels, heaters, fans and underfloor heating. Easy wall mounting: Quick and easy to install on the wall. Precise temperature control: Control to desired temperature with an accuracy of 0.3 °C. Wide temperature range: Set the desired temperature within the range of 11 to 29° C, in steps of 0.5 °C. Non-freeze mode: Freeze protection with a 3°C mode. Automatic night reduction: The temperature is reduced for 8 hours, repeated daily cycle. Indication and test mode: Includes relay switching indication and TEST mode for easy checking. Technical specifications: Power supply: Plug (230V/50Hz) Thermostat Type: Wire Control method: Hysteresis (0.3°C) Accuracy: 0.5°C Dimensions (LxWxD): 81x81x30 mm Protection degree: IP20 Working temperature: 0°C to 40°C Switching element: Relay Output: 16 A / 250 V AC Temperature changes per day: 1 Adjustable temperature range: 11°C to 29°C Temperature setting: Per 0.5 °C

Read more less

Product sheet for PT14-P Electronic Room Thermostat Product name: PT14-P Electronic Room Thermostat Brief Description: The PT14-P is a versatile electronic room thermostat, ideal for households, family homes and offices with electric heating. Suitable for switching on heaters, electric radiant panels or electric underfloor heating up to 16 A. Advantages: Large illuminated display: For clear and easy reading of the settings. Weekly program: With 6 changes per day for optimal control over the temperature. Flexible temperature settings: Choose from dampening, comfort and party temperature. Adjustable hysteresis: From 0.1°C to 6°C for precise temperature control. Current temperature correction: Ability to adjust the current temperature. Safety feature: Includes lock and WINDOW function for added convenience and security. Easy Operation and Assembly: Designed for hassle-free installation and use. Technical specifications: Power supply: Plug (230V/50Hz) Thermostat Type: Wire Control method: Hysteresis 0.1°C to 6°C Accuracy: 1°C Dimensions (LxWxD): 81x81x27mm Protection degree: IP20 Working temperature: 0°C to 40°C Switching element: Relay Output: 16 A Temperature changes per day: 6 Adjustable temperature range: 3°C to 39°C Temperature setting: Per 0.5 °C Minimum programming time: 10 minutes Minimum indication step: 0.5 °C Possibility to connect external sensors: No Protection class: II Spare battery: No Backup memory: Yes

Read more less

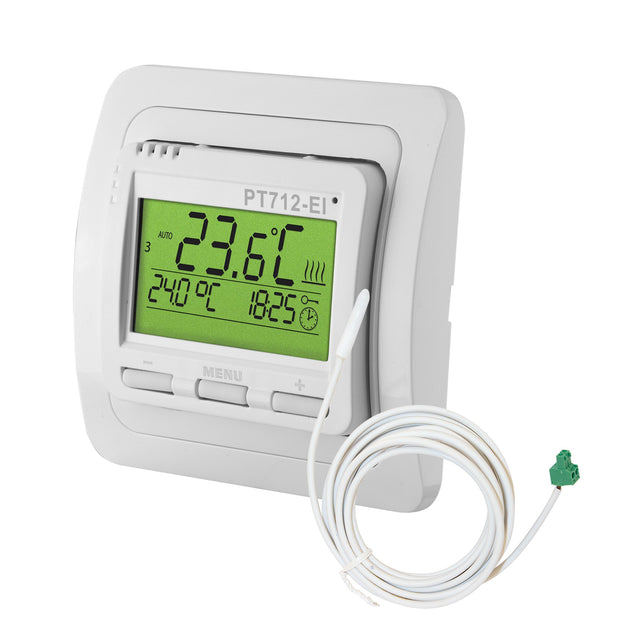

Product sheet for PT712 Digital Thermostat Product name: PT712 Digital Thermostat Brief Description: The PT712 is an advanced digital thermostat with a spatial sensor, specially designed for the control of electric underfloor heating. Ideal for heating cables, mats and films, with the ability to control room temperature and, with an external sensor, floor temperature. Advantages: 2 week program: With 6 temperature changes per day for optimal control. Illuminated display: Clearly readable in all lighting conditions. Adjustable hysteresis: For precise temperature control. Minimum switch-on time: Possibility to set a minimum time for switching on the heat source. Multiple operating modes: AUTO, MANU, OFF and HOLIDAY for flexible usage options. Maximum Floor Temperature Limits: Set safe temperature limits for the floor. Fast temperature change: Simple and fast adjustment of the desired temperature. Opening hours information: Useful information about opening hours. Child safety: Key lock for extra safety. Backup in case of power failure: Backup for up to 100+ hours with rechargeable NiMH batteries. Easy installation: Plug-in mounting system for quick and easy installation. Elegant design: Stylish design to match VENUS switches. Technical specifications: Power supply: Plug (230V/50Hz) Thermostat Type: Wire Control method: Hysteresis (0.1°C to 5.0°C) Accuracy: +/- 0.5°C Dimensions (LxWxD): 81x81x47mm Protection degree: IP20 Working temperature: 0°C to 40°C Switching element: Relay Output: 12 A, 2760 W Temperature changes per day: 6 Adjustable temperature range: 3°C to 100°C Temperature setting: Per 0.5°C Minimum programming time: 10 minutes Minimum indication step: 0.1°C Possibility to connect external sensors: Yes (not included) Protection class: II Spare battery: Yes (rechargeable NiMH, >100 hours) Backup memory: No

Read more less

Product sheet for Floor Sensor CT04 Product name: Floor sensor CT04-10k Brief Description: The CT04-10k floor sensor is designed for accurate measurements of both room and floor temperature. This sensor is compatible with the PT712 and PT713 thermostats, making it a versatile addition to any heating system. Advantages: Includes Connector: Comes with a connector for easy connection to the thermostat. Expansion for Thermostats: Specially designed for expansion of types PT712 and PT713. Accurate Measurements: Allows you to measure both room and floor temperatures. High Temperature Resistance: Suitable for measurements up to 99°C. Sustainable Materials: Equipped with a 10kΩ silicon conductor with a length of 3 meters and a plastic housing. Technical specifications: Type Conductor: 10kΩ silicon Length: 3 meters Housing Material: Plastic Temperature range: Suitable for measurements up to 99°C Available Versions: CT04-10k S: 10kΩ silicon conductor, length 3 meters, plastic housing.

Read more less

Product description for "Thermostat H1" Introducing Thermostat H1 , an advanced, fully programmable hidden thermoregulator designed to effortlessly control electric heating systems. With the sleek LED control panel, the Thermostat H1 offers precise temperature control via both internal and external sensors. This advanced device ensures that your desired air or floor temperature is consistently maintained, increasing comfort and energy efficiency. Most important features: Energy efficient: With a power consumption of less than 1.5 W, the Thermostat H1 is an environmentally friendly choice. Temperature range: Adjustable between 5 – 35 °C, with the option to limit underfloor heating temperatures from 10 °C to 70 °C. Dual sensors: Equipped with an internal air temperature sensor and an NTC floor temperature sensor for accurate measurements. High load capacity: Supports a maximum output load of 16A, suitable for various heating applications. User-friendly design: The device has touch button controls and a bright blue backlit display, which is easy to read even for people with visual impairment. Versatile programming: Offers 5+2 temperature programming (5 weekdays + weekend) for customized heating schedules. Slim profile: Only 12 mm thick, allowing it to fit seamlessly into any interior. Complete package: Includes the thermoregulator, an external floor temperature sensor with cable, installation screws and a manual in English. Safety and Durability: Comes with an IP20 protection rating and a 24-month warranty for peace of mind. Manual adjustment: Possibility of manual temperature control when necessary. Contents of the package: Thermoregulator with built-in temperature sensor External floor temperature sensor with cable Installation screws User manual Packaging box The Thermostat H1 is perfect for maintaining a comfortable and energy-efficient environment in any room, whether you measure air temperature, measure floor temperature or combine both with a floor temperature restriction. Upgrade your heating system today with the precision and reliability of the Thermostat H1.

Read more less

Product description for "Thermostat H1" Introducing Thermostat H1 , an advanced, fully programmable hidden thermoregulator designed to effortlessly control electric heating systems. With the sleek LED control panel, the Thermostat H1 offers precise temperature control via both internal and external sensors. This advanced device ensures that your desired air or floor temperature is consistently maintained, increasing comfort and energy efficiency. Most important features: Energy efficient: With a power consumption of less than 1.5 W, the Thermostat H1 is an environmentally friendly choice. Temperature range: Adjustable between 5 – 35 °C, with the option to limit underfloor heating temperatures from 10 °C to 70 °C. Dual sensors: Equipped with an internal air temperature sensor and an NTC floor temperature sensor for accurate measurements. High load capacity: Supports a maximum output load of 16A, suitable for various heating applications. User-friendly design: The device has touch button controls and a bright blue backlit display, which is easy to read even for people with visual impairment. Versatile programming: Offers 5+2 temperature programming (5 weekdays + weekend) for customized heating schedules. Slim profile: Only 12 mm thick, allowing it to fit seamlessly into any interior. Complete package: Includes the thermoregulator, an external floor temperature sensor with cable, installation screws and a manual in English. Safety and Durability: Comes with an IP20 protection rating and a 24-month warranty for peace of mind. Manual adjustment: Possibility of manual temperature control when necessary. Contents of the package: Thermoregulator with built-in temperature sensor External floor temperature sensor with cable Installation screws User manual Packaging box The Thermostat H1 is perfect for maintaining a comfortable and energy-efficient environment in any room, whether you measure air temperature, measure floor temperature or combine both with a floor temperature restriction. Upgrade your heating system today with the precision and reliability of the Thermostat H1.

Read more less

Product description for "Thermostat H3" The Thermostat H3 is a manual temperature controller specially designed for electric underfloor heating systems. With simple button operation, the Thermostat H3 provides an easy-to-use way to accurately control the temperature of your underfloor heating. This thermostat is ideal for those looking for a reliable and efficient solution for maintaining a pleasant temperature in the home. Most important features: Manual operation: Simple temperature control via buttons, without complicated programming. Temperature range: Adjustable from 5 – 40°C, perfect for different heating needs. Energy efficient: With a power consumption of less than 2 VA, the Thermostat H3 ensures efficient energy use. NTC Floor Temperature Sensor: Included for accurate measurements and optimal temperature control. High load capacity: Supports a maximum output load of 16A, suitable for various heating systems. Durable design: Protective housing with IP21 rating, allowing installation in bathrooms. Compact size: With dimensions of 86x86 mm and a slim thickness of only 12 mm, it fits seamlessly into any interior. Complete set: Comes with a thermoregulator, external floor temperature sensor with cable, installation screws, English manual and warranty card. Visual signaling: LED indicator for easy status checking. Warranty: 24-month warranty for long-lasting peace of mind. Contents of the package: Thermoregulator External floor temperature sensor with cable Installation screws User manual (English) Packaging box Warranty card The Thermostat H3 offers a practical and reliable solution for the temperature control of your electric underfloor heating. With its simple operation and efficient performance, the Thermostat H3 is the perfect choice for a comfortable and energy-efficient home. Upgrade your heating system today with the versatile and reliable Thermostat H3.

Read more less
